Slender Quays Newel Post Ball Cap Select Timber and Type

Summary

90mm Slender Quays Newel Post Caps

Use the drop down boxes above to select the cap design, type and timber you wish to purchase.

Click here to find our full range of Slender Quays stair parts (opens up into a new window).

Slender Quays is only available in Oak and Pine - Please contact us for a price in any other timber.

Turned Stair Newel Post Caps with spigot dowel can be used with existing newel posts or with new newel posts.

This spigot dowel type cap has been designed to drop into a newel post top with a spigot hole measuring 38mm in diameter.

Fitting 90mm Slender Quays Newel Post Caps

When fitting to new newel caps simply glue the spigot dowel on the cap into the pre-drilled hole on the top of the newel post.

If you are fitting to an existing post then drill a hole 38mm wide and 35mm deep then glue the cap using a suitable wood glue.

Staircase Building Regulations

Handrail heights on the staircase are measured from the front bullnose of a step to the top of the handrail.

Spindles must not allow a sphere 100mm in diameter to pass between two spindles.

If you are unsure please contact us or your building inspector for new builds.

You can download the Cheshire Mouldings Benchmark Fitting Instructions manual from here

Specification

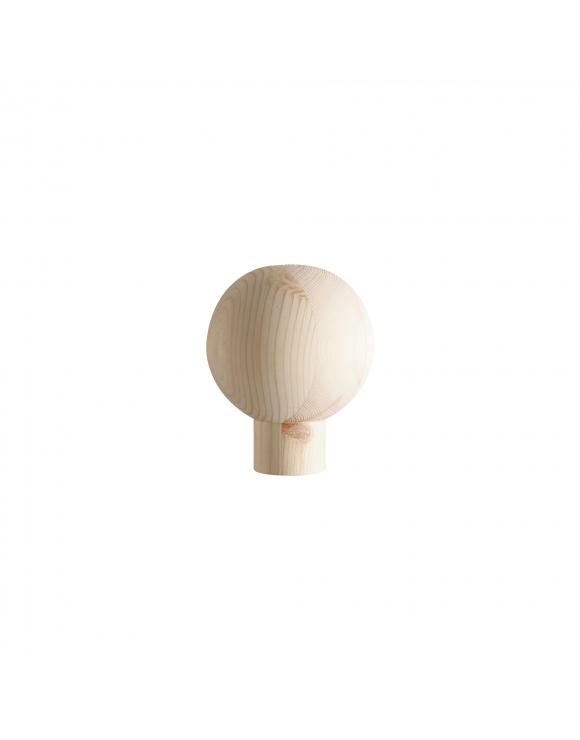

Slender Quays Newel Post Caps

Full Ball Measure 84mm Round

Half Ball Measures 84mm x 40mm

Spigot Dowel Measures 38mm x 30mm .

Slender Quays Stair Parts are only available in Oak and Pine timber off the shelf. However, we can make these in any timber type. Email us for a quote.

You can download the Cheshire Mouldings Benchmark Fitting Instructions manual from here
